The Platypus QuickDraw Microfilter System is a compact, ultralight water filtration solution designed for hikers, trail runners, and minimalist backpackers who need reliable hydration without the bulk or complexity of traditional pump filters. Weighing just 3.6 oz (102 g), the QuickDraw offers a squeeze-style filtration method that removes harmful bacteria and protozoa from backcountry water sources. It’s compatible with a range of bottles and reservoirs, making it one of the most versatile and user-friendly filters in its class.
Design and Components

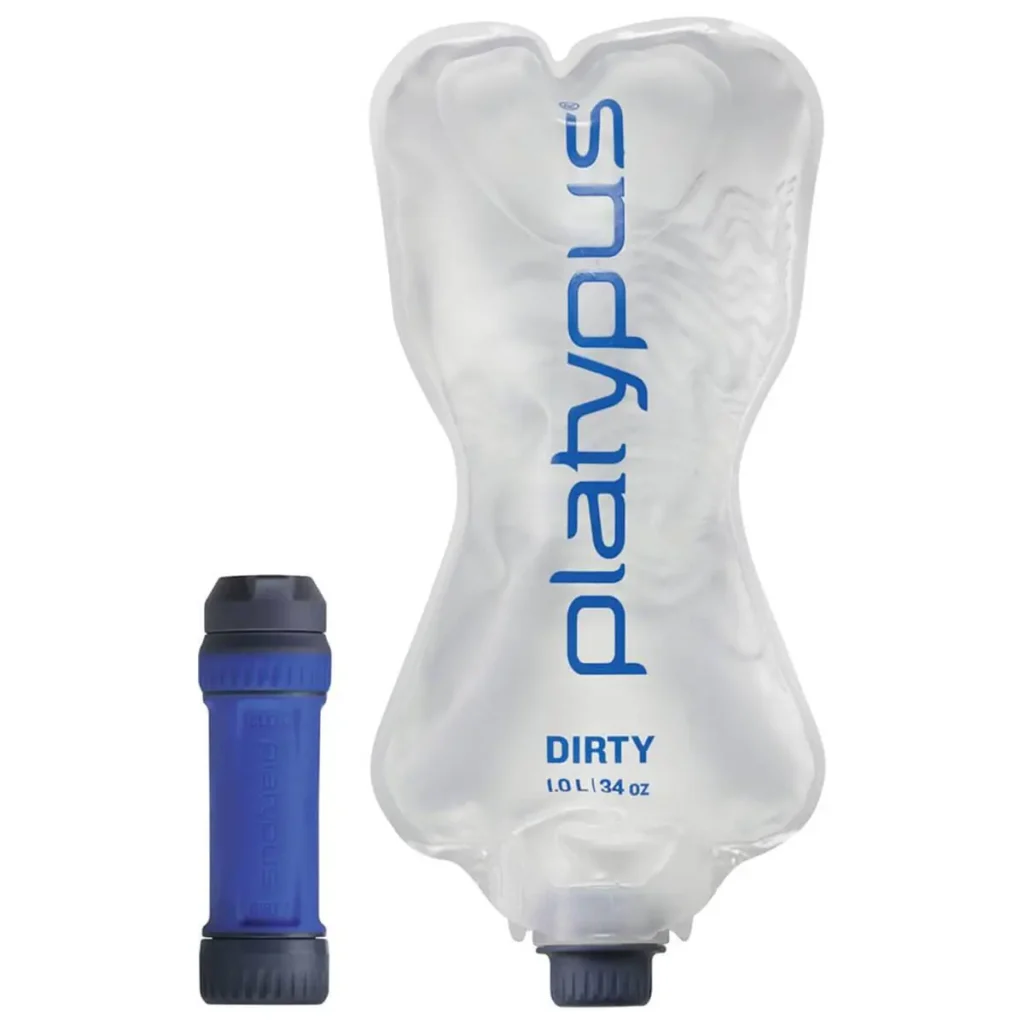

The QuickDraw system includes two main components:
- A hollow fibre filter cartridge
- A 1L Platypus SoftBottle reservoir
The filter is housed in a thermoplastic elastomer (TPE) casing that’s soft to the touch and easy to grip, even when wet. The reservoir features a wide-mouth opening for easy scooping from streams or lakes, and a handle that keeps your hands dry during collection—a thoughtful detail for cold-weather use.
The system is compatible with other bottles, including SmartWater and narrow-mouth Nalgene bottles, allowing users to customise their hydration setup. The filter screws directly onto these bottles, making it easy to switch between containers depending on your needs.
Filtration Performance
The QuickDraw uses hollow fibre technology to remove:
- 99.9999% of bacteria (e.g., E. coli)
- 99.9% of protozoa (e.g., Giardia, Cryptosporidium)
While the manufacturer advertises a flow rate of up to 3 litres per minute, real-world testing shows a more modest rate of around 44 seconds per litre. This is still competitive for squeeze filters and more than adequate for solo use on the trail.
The water produced is clear, clean, and taste-neutral thanks to the polyethylene inner lining of the reservoir. Users report no plastic aftertaste, even after extended use.
Durability and Maintenance
Durability is a key concern for backcountry filters, and the QuickDraw performs well under typical conditions. Like other hollow fibre filters, it can be compromised if frozen or dropped. However, Platypus includes a unique integrity check feature: fill the reservoir halfway, invert the filter, and squeeze. If bubbles stream through the system when air is forced through, the filter is compromised and should be replaced.
Maintenance is straightforward. In the field, you can restore flow rate by shaking the filter vigorously with water inside. For deeper cleaning, Platypus recommends flushing the system with either:
- 10 Aquatabs
- 2.5 ml of household bleach
This chemical cleaning method may deter some users, but it’s effective for long-term storage and sanitation.
Setup and Ease of Use
The QuickDraw is intuitive and fast to set up. With only a few components—filter, reservoir, and caps—it assembles in seconds. The wide-mouth reservoir makes water collection easy, and the squeeze mechanism is simple to operate.
Unlike gravity-fed systems, the QuickDraw requires manual pressure to push water through the filter. Initially, this may require some effort, but users report that the resistance decreases with use. The handle on the reservoir is especially useful in cold conditions, allowing you to collect water without soaking your hands.
Weight and Packability
At just 3.6 oz, the QuickDraw is one of the lightest full-featured filters available. It packs down small and fits easily into running vests, backpack side pockets, or bikepacking bags. The flexible reservoir conforms to tight spaces, and the filter itself is compact and rugged.
This makes the QuickDraw ideal for:
- Ultralight backpacking
- Trail running
- Thru-hiking
- Emergency kits
- International travel
Its compatibility with common bottles adds to its versatility, allowing users to carry fewer proprietary components.
Limitations and Considerations
The biggest drawback of the QuickDraw is its short cartridge life—rated for just 1,000 litres. This is significantly lower than competitors like the Sawyer Squeeze (up to 100,000 gallons) or Katadyn BeFree (1,000 litres but with faster flow). For long-distance hikers or frequent users, this may mean replacing the filter more often.
Other considerations include:
- Requires chemical cleaning for long-term storage
- Flow rate may be slower than advertised
- Not suitable for freezing conditions unless properly protected
Despite these limitations, the QuickDraw remains a solid choice for short-term use, fastpacking, and minimalist setups.
Comparison with Similar Filters
| Feature | Platypus QuickDraw | Sawyer Squeeze | Katadyn BeFree |
|---|---|---|---|
| Weight | 102 g | 85 g | 63 g |
| Filter Life | 1,000 litres | 378,000 litres (100,000 gal) | 1,000 litres |
| Flow Rate (real-world) | ~44 sec/litre | ~60 sec/litre | ~30 sec/litre |
| Integrity Check | Yes | No | No |
| Bottle Compatibility | Wide | Wide | Proprietary only |
| Price Range | £40–£50 | £30–£40 | £45–£55 |
The QuickDraw stands out for its integrity check, ease of use, and compatibility with multiple bottles. While its filter life is shorter, its performance and portability make it a strong contender for fast-and-light adventures.
Final Verdict
The Platypus QuickDraw Microfilter System is a well-designed, ultralight water filter that offers reliable performance for solo hikers, trail runners, and minimalist backpackers. Its squeeze-style operation, compatibility with common bottles, and unique integrity check make it a standout option in the crowded field of portable water filters.
While its shorter cartridge life and need for chemical cleaning may deter some users, the QuickDraw excels in its intended role: a lightweight, easy-to-use filter for short trips and fast-moving pursuits. For those who value simplicity, portability, and field-ready reliability, the QuickDraw is a smart addition to any gear list.
